NAS產品資訊

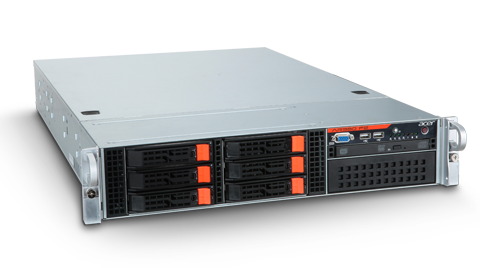

AR380 F2
info
產品規格
| 處理器 | E5-2620(2.0G/15M)(六核心)*1 | 記憶體 | 4G(DIII)(MAX:384GB) |
|---|---|---|---|
| 擴充槽 | 7 | riad | raid 0, 1, 10 |
| 硬碟機插槽 | 6 (備援式熱抽硬碟) | 重量 | |
| 尺寸(寬X高X深) | size | 作業系統 | 無 |
| tower | 機架式(2U/2P) | 其他 |
產品描述
| Processor & Chipset | |
| Number of Processors Supported | 2 |
| Chipset Manufacturer | Intel |
| Chipset Model | C606 |
| Memory | |
| Maximum Memory | 384 GB |
| Memory Technology | DDR3 SDRAM |
| Memory Standard | DDR3-1600/PC3-12800 |
| Number of Total Memory Slots | 24 |
| Storage | |
| Optical Drive Type | No |
| Controllers | |
| Controller Type | Serial Attached SCSI (SAS) Serial ATA/300 |
| RAID Supported | Yes |
| RAID Levels | 0, 1, 10 |
| Display & Graphics | |
| Graphics Memory Capacity | 128 MB |
| Graphics Memory Accessibility | Shared |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| I/O Expansions | |
| Number of Total Expansion Bays | 7 |
| Number of External 5.25" Bays | 1 |
| Number of 3.5" Bays | 6 |
| Number of Total Expansion Slots | 6 |
| Number of PCI Express x8 Slots | 4 |
| Number of PCI Express x16 Slots | 2 |
| Input Devices | |
| Keyboard | No |
| Pointing Device Type | No |
| Interfaces/Ports | |
| Total Number of USB Ports | 4 |
| Number of USB 2.0 Ports | 2 |
| Network (RJ-45) | Yes |
| VGA | Yes |
| Software | |
| Software Included |
|
| Power Description | |
| Number of Power Supplies Installed | 1 |
| Maximum Power Supply Wattage | 920 W |
| Miscellaneous | |
| Package Contents |
|
| Certifications & Standards |
|
